Transform Your Race Walking Training with RWECS
Problems we are trying to solve
Our Contribution
RWECS: An electronic device to measure Loss of Contact (LOC) in race walking
01
The lack of an objective method for judging the loss of contact in race walking
02
The loss of confidence in the discipline
03
The controversy around race walking in the media

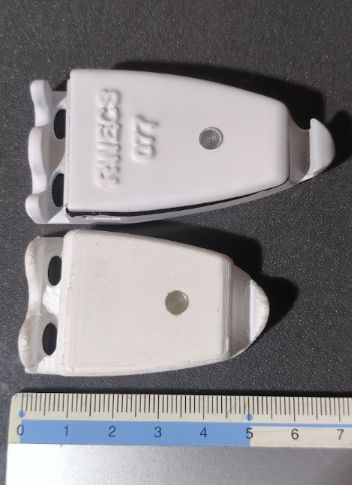

RWECS Devices
Specifications (v5.0):
- No Insole/No cables
- Weight: < 15 g
- Size: 53mm x 32mm
- Memory (2 Mbits): 256 kB – 40000
leg cycles (80000 steps) - Battery life (capacity 120 mAh)
- Standby > 30 days
- Deep Sleep > 1 year
- USB to Magnetic 2-pin charger
- Bluetooth 5.2
- IP67 waterproof (Silicon Mold – simil
ABS)

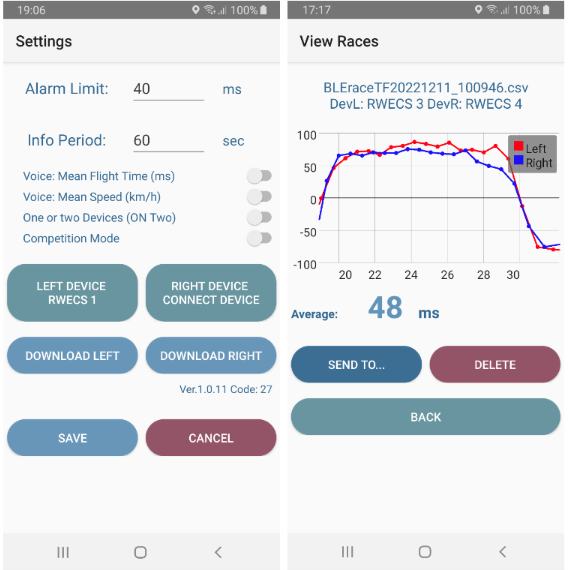

RWECS: Training Software
Single use (to be used on a treadmill or wearing the smartphone)
- 1 or 2 devices
- Shows FT Step by Step
- Sound if FT > Limit
- Voice synthesis
- mean FT (ms)
- mean Pace (min/km)
- Stores GPS position

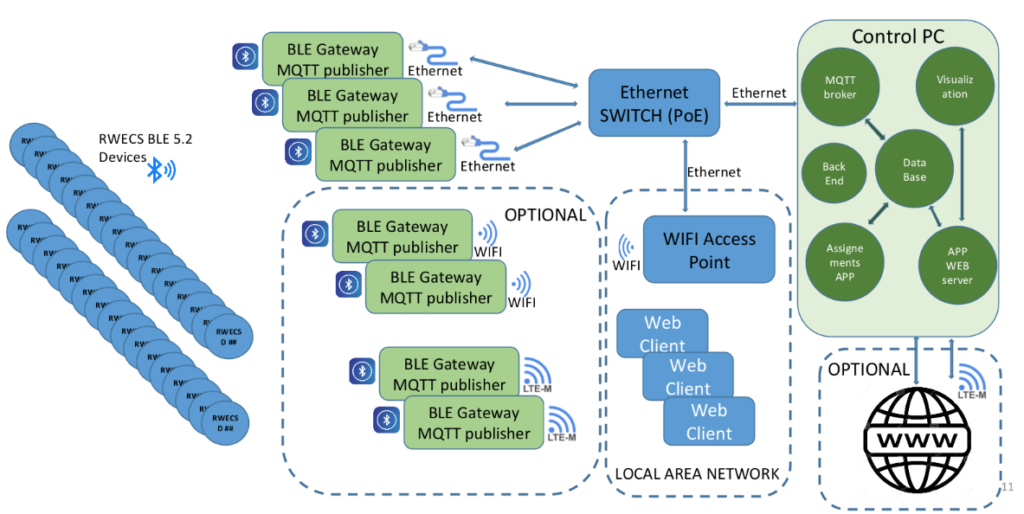

Competition System Structure
Data Visualization
Welcome screen + Identification

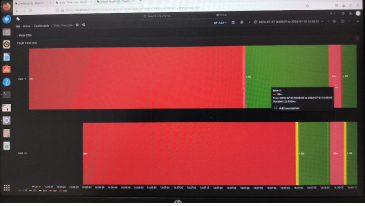

Time State register for all athletes
Data Visualization

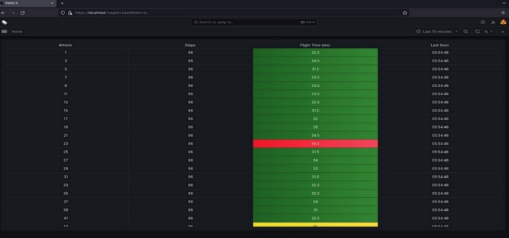

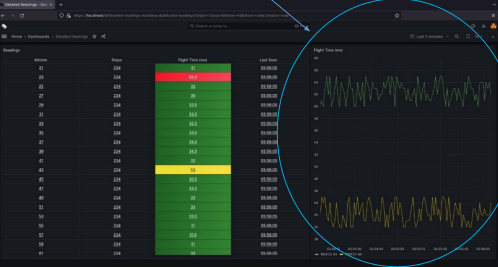

Main Screen with the last Mean Fly Time for all athletes
FT for all plus Time register of right and left FT of a selected athlete
RWECS: What can be measured?
The devices measure the Time of the Heel-Impact and the Time of the Toe-off events, for each foot, step by step

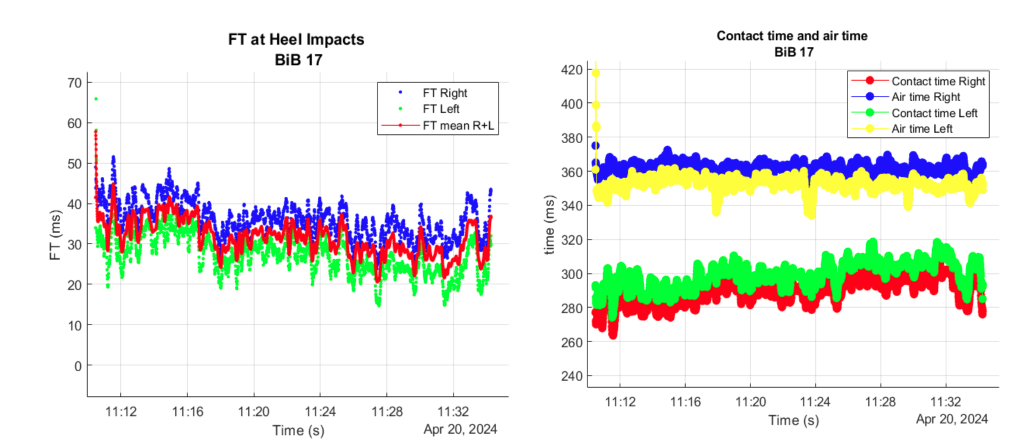

And also the Contact Time and the Time spent on Air
for each foot could be calculated
From these times the Flight Time for each foot could be calculated step by step

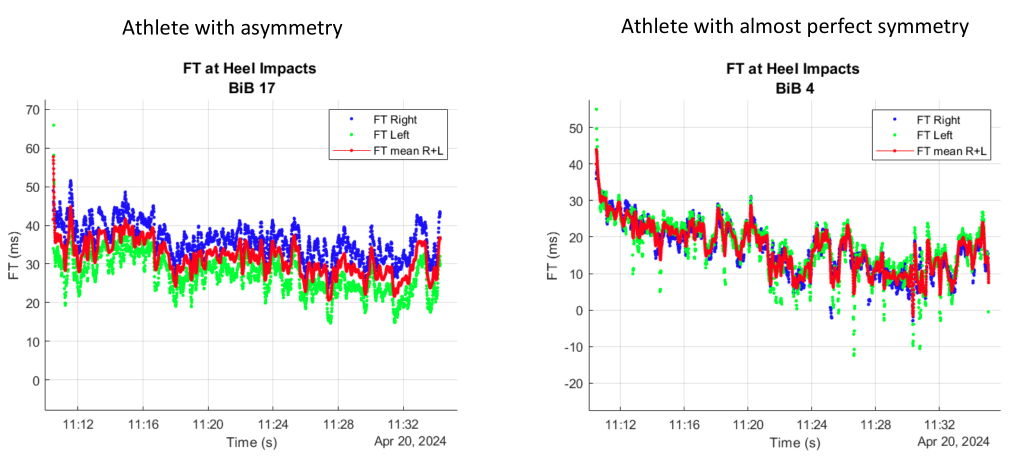

The effective (visual) Flight Time is an average of the Right and Left Leg Using both legs asymmetry could be measured

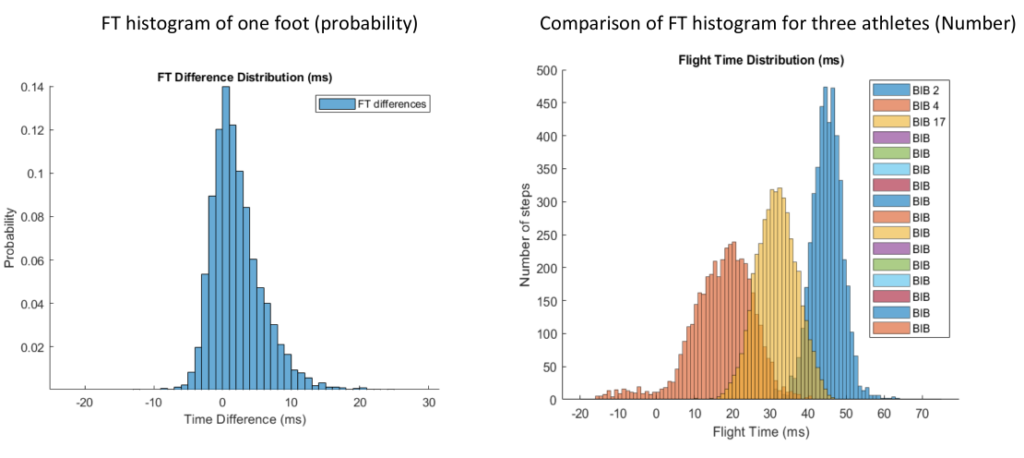

The histogram of the Flight Time could be obtained for a given period of time. For both feet or for a single foot.

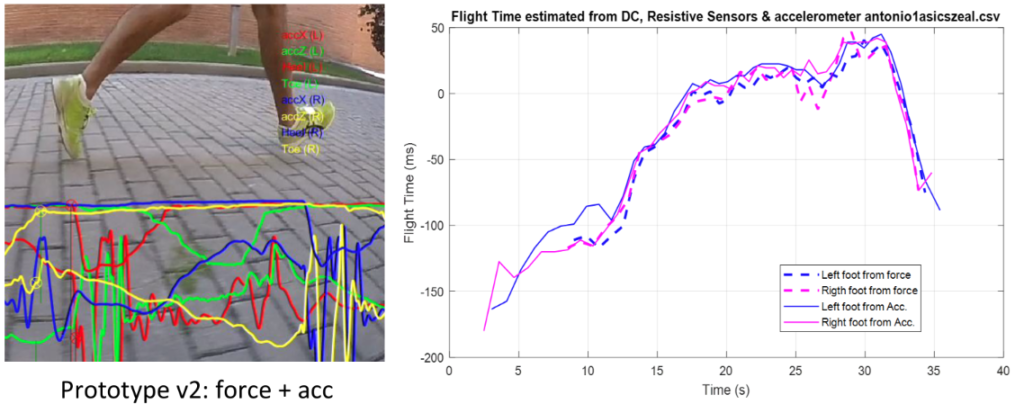

System Comparison Force vs Accelerometer
